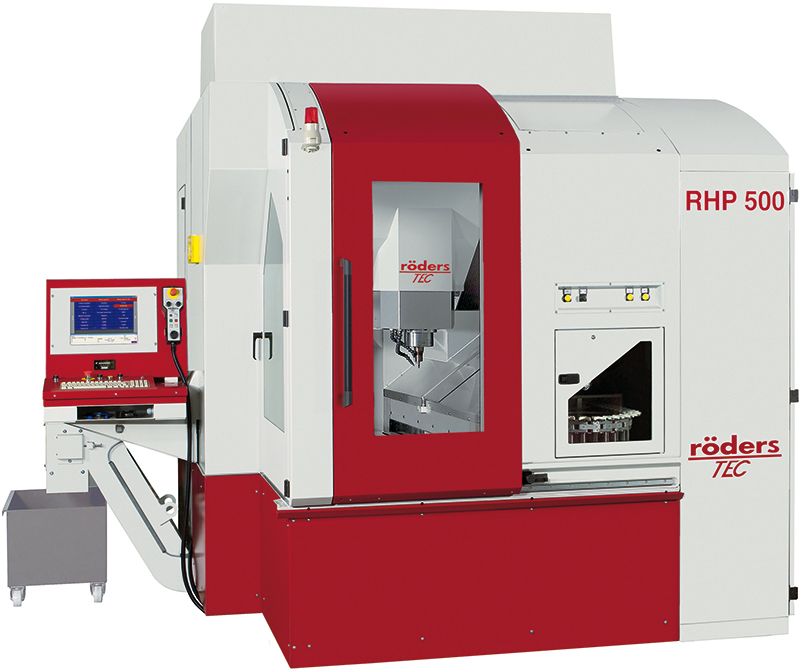

RHP500
- Particularly suitable for specialised applications requiring sub-micrometre tolerances
- Suitable for all materials, except dusty like graphite
- The preferred lubricant is temperature-controlled flushing oil
| Technical data | RHP500 |
|---|---|
| Machining range | 500 mm x 552 mm x 300 mm |
| Table size | 600 mm x 540 mm |
| Maximum height | 455 mm between spindle nose and machine table |
| Workpiece weight | max. 400 kg |
| Feed | 0–60,000 mm/min |
| Milling spindle (standard) | 42,000 rpm, 14 kW, HSK E40, max. tool diameter 16 mm, others on request |
| Tool changer | 42 places (chain changer – can be loaded during machining), integrated tool measuring laser |
| Chip disposal | With 2 screws into chip box behind the machine, additional chip conveyor optional |
| Machine weight | ~ 10.0 t |
| Required space | W 3015 mm x L 2510 mm x H 2750 mm |
