RXP500DS – 5‑axis machine

Maschine RXP500DS

Compact, highly dynamic, high-precision
5‑axis HSC machine

  • With counter bearing and special Röders geometry compensation
Technical data
Machining range450 mm x 455 mm x 240 mm
Swivelling range+/-115 degrees
Rotation rangeAlmost unlimited
Table size250 mm (integrated chuck optional)
Workpiece weightmax. 60 kg
Feed0–42,000 mm/min
Milling spindle (standard)42,000 rpm, 14 kW, HSK E40,
maximum tool diameter 16 mm
(others on request)
Tool changer21 (linear), optional 35 or more places
(chain changer – can be loaded during machining)
integrated measuring laser
Chip disposalIn 2 chip boxes, optional chip conveyor
Machine weight~6.5 t
Required spaceW 2710 mm x L 2350 mm x H 2350 mm
Innenraum RXP500DS

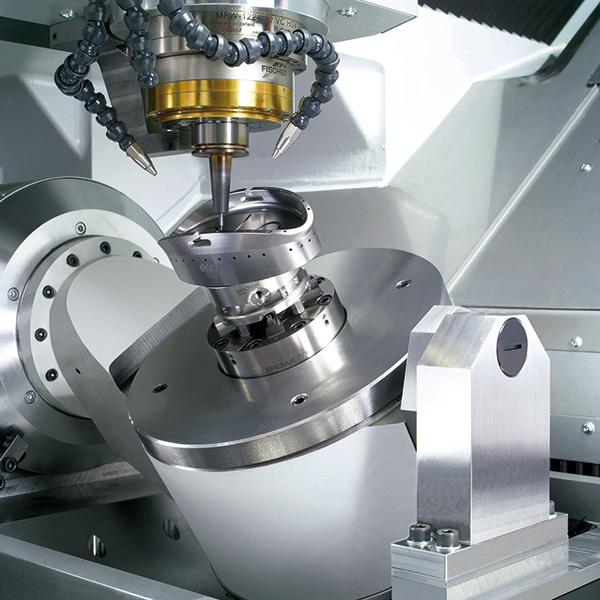

Machining area RXP500DS
  • Very efficient due to high stiffness and optimum layout of the mass inertia
  • Two-sided support of the C‑axis for high stability and precision
  • High resolution optical encoders in all axes
  • Powerful wear-free direct drives in all axes
  • Special Röders 5‑axis geometry compen­sation for high precision, also at long lasting machining operations
  • Precise tempe­rature control of the machine elements
  • For dynamic decou­pling, the swivelling direction is at right angles to the X axis
  • Windows very close to the machining area, visible from two sides
  • Chucks for different pallet systems can be integrated into the C‑table
