Röders GmbH RPT600DSH

Milling, grinding, measuring in one machine

  • Several years of ground­breaking develo­p­ments are the foundation of the RPT series
  • Maximum precision, even better surfaces and shorter processing times lead to signi­ficant increases in produc­tivity in mould and die making as well as production applications
  • PRECITEMP®-Technology in the different levels I, II and III for highest precision also if ambient tempe­ra­tures of the machine are not stable
  • All options known from the RXP series are fully available

Röders GmbH PRECITEMP graph running characteristics of the linear guideways
NANOTOL® Guideway concept

In coope­ration with a well-known guideway manufac­turer, a quantum leap in the running behaviour of the guideways with tolerances in nanometre range was achieved, which offers considerable advan­tages, especially for appli­ca­tions with high surface requi­re­ments. The generous dimen­sioning of the guideways ensures high rigidity and long durability.

Röders GmbH PRECITEMP Grafik Große Kröpfung der C-Achse Graph large offset of c-axis
Large offset of C‑axis

The workpiece is placed in the center of the swivel and rotary axes. As a result, the linear axes have to make substantial less compen­sating movements for 5‑axis machining. The processing times are signi­fi­cantly reduced and the workpieces are more precise.

Röders GmbH PRECITEMP Langlebigkeit und Effizienz Efficiency and Durability
Durability and energy efficiency

The RPT series was designed for durability and energy efficiency down to the last detail.
The control cabinet is usually integrated into the machine tool. For the RPT series, the electrical cabinet stands alone next to the machine so that electronic components are not affected by vibra­tions from machining or the dynamics of the machine. In addition, the high weight of the machine and the large distance between the machine feet ensure low stress despite the high dynamics of the axes. Numerous measures have been under­taken to signi­fi­cantly reduce energy consumption, e.g. a power-controlled cooling unit.

Technical data
Machining range470 mm x 530 mm x 300 mm
Swivelling range+/- 115 degrees
Rotation rangeAlmost unlimited
Table size250 mm round
Clamping unitErowa ITS148 PowerChuck / System 3R Magnum / Parotec Power Grip 160
Workpiece weightmax. 60 kg
Feed0–60,000 mm/min
Milling spindle (standard)42,000 rpm, 14 kW, HSK E40,
maximum tool diameter 16 mm, others on request
Tool changer42 or 87 places for HSK E40,
optional larger changer available,
integrated measuring laser
Chip disposalWith 2 screws into chip box behind the machine
or with additional chip conveyor
Machine weight~8.5 t
Required spaceW 2200 mm x L 2500 mm x H 2720 mm
Röders GmbH Innenraum RPT600DSH

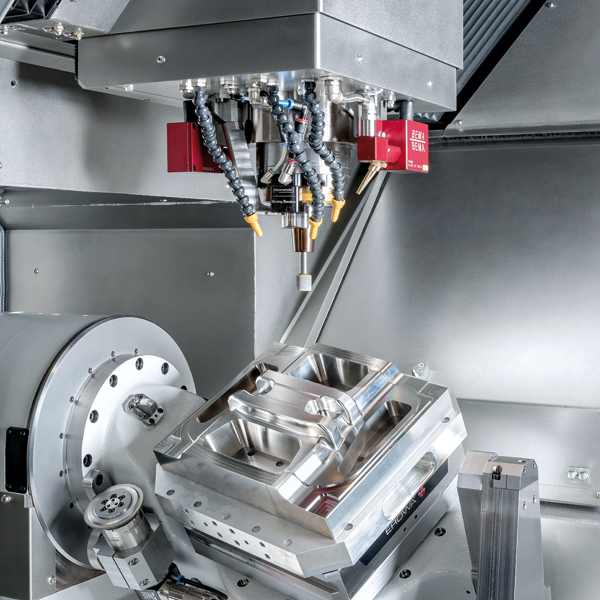

Machining area RPT600DSH
  • Very efficient due to high stiffness and optimum layout of the mass inertia
  • Two-sided support of the C‑axis for high stability and precision
  • High resolution optical encoders in all axes
  • Powerful wear-free direct drives in all axes
  • Special Röders 5‑axis geometry compen­sation for high precision, also at long lasting machining operations
  • Precise tempe­rature control of the machine elements
  • For dynamic decou­pling, the swivelling direction is at right angles to the X axis
  • Windows very close to the machining area, visible from two sides
  • Chucks for different pallet systems can be integrated into the C‑table

Download Stroke position RPT600DSH

Download Floorplan RPT600DSH
